1967 Custom Harley Davidson Trike

by Dick TVC Hartman

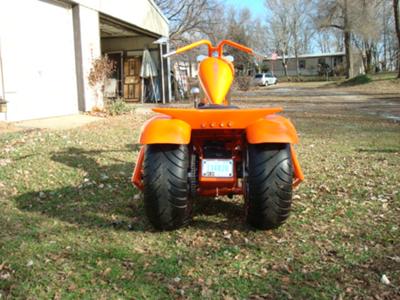

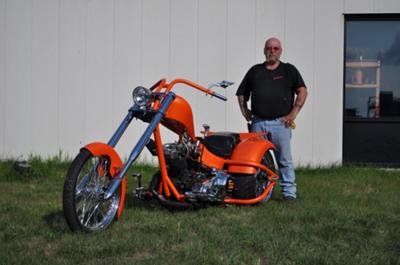

Harley Davidson Trike

Harley Davidson Trike

Harley Davidson Trike

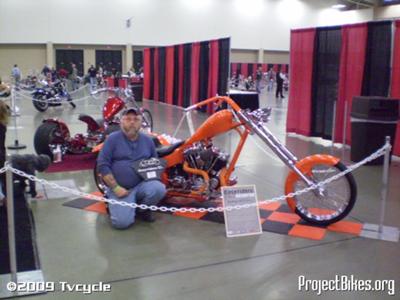

Esay Rider winner
Only 34

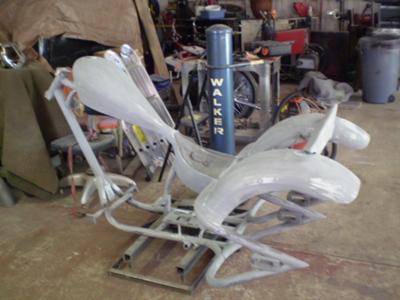

1 peice trike body

Custom Built Three Wheeler: 1967 Custom Harley Davidson Trike

Engine: 1967 Harley Davidson. Panhead, shovelhead.

30 over s&s carb, andrews “a” grind cam.

Transmission: 1967 4 speed

Hand shift - foot clutch

Belt drive primary
Chain drive final. Frame: tvc custom, hardtail trike.

47% rake
6” up—3” out stretch
2” & 1.5” diameter.

Frame, fuel tank, oil tank, rear fenders, all molded to be one piece.

Front forks 58mm inverted 12” over.
3% triple trees

1.5” handle bars
Internal throttle cable
Grips are same size as bars

60 spoke 2.25 x 21” front wheel
Mh 90/21 front tire
60 spoke 18 x 8.5”
260/35 r 18 rear tires

Flht 4 piston rear brakes. Stainless steel fuel and oil lines. Wiring and oil lines are hidden as much as possible-routed in frame.

3.5 gallon gas tank
Flush popup cap

house of color
Color: tangeglow pearl. clearm 10 coats, 1.25 gallons.

Comments for 1967 Custom Harley Davidson Trike

Average Rating starstarstarstarstar

Click here to add your own comments

May 08, 2012
by: Spider

That is a piece of art.Could you make up a set of plans for a "Fatboy" Frame, that I could buy from you? I lost a leg back in 02, and have been wanting to build a Trike but haven't seen any that I really liked the look of until now. If you can,post back up on here and let me know. Thanks.
