Rake & Frame Stretch Question?

by William

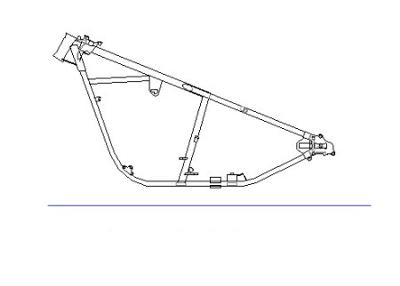

Just The Frame

Just The Frame

Just The Frame
Is This Right?

Rake: 36 degrees

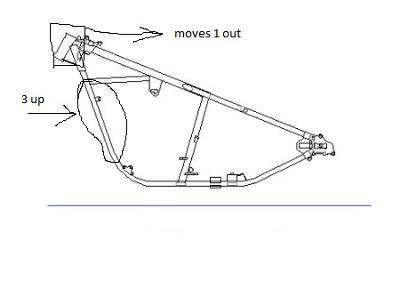

Stretch: 3 up, 1 out, 1 back.

Okay Here`s Where I get a little off!
I`m pretty sure it`s about the neck!

What is the 3 up? = stretch the down-tubes upward?

What is the 1 out? = the steering neck will move 1 inch forward?

what is the 1 back? = Have no ideal here?

Is this somewhat on the right track?

Answer: Rake & Frame Stretch

Hello William,

Frame stretch terminology is often confusing but it seems like you are on the right track. Usually a stock frame is based on a stock Harley Davidson Soft-tail frame. Any adjustments made to this stock size is what people are referring to when they say “up” or “out.”

For instance if the frame is 3” up and 1” out, then you have increased the down tube height by 3” and 1” out in the top tube or backbone. You can express the exact same thing by saying 3” down and 1” back. Ultimately you are referring to the down tube and backbone length changes.

I hope that answers your question.

Custom Choppers Guide

Comments for Rake & Frame Stretch Question?

Average Rating starstarstarstarstar

Click here to add your own comments

May 16, 2012
Rake and stretch
by: Daniel Nerf

I'm afraid you got one portion of the anwser wrong. The 3" up is correct but the 1" out is in the direction away from the rider.

Apr 26, 2012
Answer to your questions:
by: Custom Choppers Guide
