1967 HD Trike

by Dick Hartman
(Fremont, In. USA)

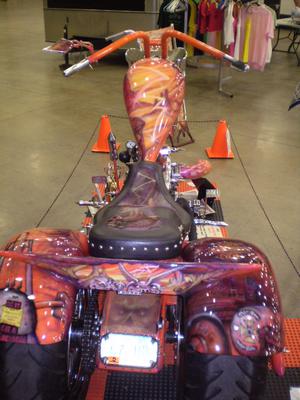

Custom Built Three Wheeler

Custom Built Three Wheeler

Custom Built Three Wheeler

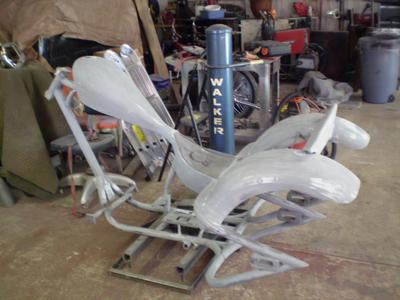

1 piece body
1967 HD Trike Easy Rider Show Winner
In it's early stages

Custom Built Three Wheeler: 1967 Custom Harley Davidson Trike.


  • Engine: 1967 Harley Davidson. Pan/shovel

  • 30 over s&s carb, andrews “a” grind cam.

  • Transmission: 1967 4 speed

  • Hand shift - foot clutch

  • Belt drive primary

  • Chain drive final. Frame: tvc custom, hardtail trike.

  • 47% rake + 3% triple trees

  • 6” up—3” out stretch

  • 2” & 1.5” diameter.


Frame, fuel tank, oil tank, rear fenders, all molded to be one piece.

  • Front forks 58mm inverted 12” over.

  • 3% triple trees

  • 1.5” handle bars

  • Internal throttle cable

  • Grips are same size as bars

  • 60 spoke 2.25 x 21” front wheel

  • Mh 90/21 front tire

  • 60 spoke 18 x 8.5”

  • 260/35 r 18 rear tires


Flht 4 piston rear brakes. Stainless steel fuel and oil lines. Wiring and oil lines are hidden as much as possible-routed in frame.

  • 3.5 gallon gas tank

  • Flush popup cap


Paint:

  • house of color

  • primer - grey

  • base - white

  • Color: tangeglow pearl. clearm 10 coats, 1.25 gallons.

  • Art work done by www.hairydidit.com
