Triumph Rat Chopper

by Jody Bain
(Somerset CA.)

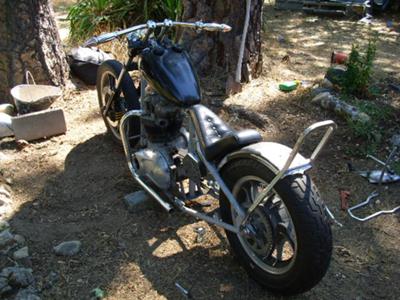

Rigid XS650 Frame

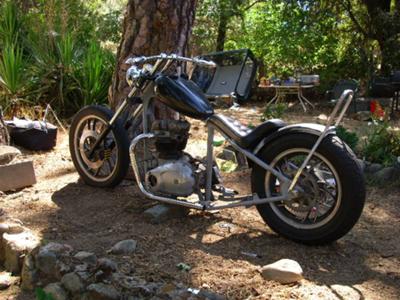

Rigid XS650 Frame

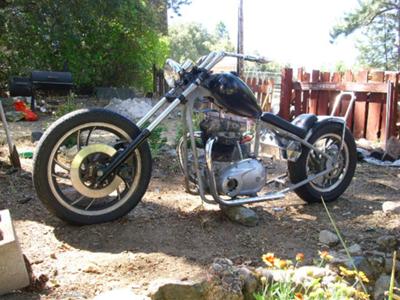

Rigid XS650 Frame
T120r 650
Triumph Rat Chopper

I started this Triumph Rat Chopper vision with a rigid frame for a Yamaha XS 650 frame, A 1972 T120r 650 motor and a very understanding wife.


Needless to say some frame modifications were at hand to get the motor to bolt in. with the rake on the frame I needed at least a 36" set of forks. Well it just so happened that a 920 Virago was a perfect fit in length and for the steer head. I wanted spoked wheels but on a project like this and a budget like mine, well you know. That's where the first hurdle came to play, I bought the front end with the wheel and then realized that Viragos are shaft drive. OOps! Upon further research I found out that the 550 Virago was a chain drive and the same size and style wheel as the 920. All Is good, NOT!

Triumph runs the rear sprocket and brake assebly, on the left side, Not Yamaha. Now I have to put my 27 plus years of metal fab work to the test. After viewing an old photo of a British 1920's bike with a hand shifting lever on the right side of the tank with a linkage system putting the shifting and the rear brake both on the right side, My vision became clear.

I have a 750 upper end kit, Model A tail light, Vintage bullet style rear turn signals and the head light I made using a 1920s police spot light, Very cool. Still lots to do.

J.Bain

Comments for Triumph Rat Chopper

Average Rating starstarstarstarstar

Click here to add your own comments

Jan 21, 2015
Rating
starstarstarstarstar
cross shaft for the brake
by: BEEZER BOB

nice looking bike when i put together a 62 A10 BSA it had the brake on the right and the chain on the left BSAstock had a cross shaft still avalable that works very werll it shifts on the right foot lever and bre petel is still on the left looking forward to see how yours turns out

Sep 06, 2011
Rating
starstarstarstar
COOL
by: JERRY THE BIKE

I THINK ITS GREAT THAT THERE IS SOME/ONE THAT STILL HAS BALLS TO BUILD A OLD SCHOOL CHOPPER.

Sep 06, 2011
Rating
starstarstarstarstar
triumph
by: Anonymous

Very cool be bro, good idea as well wit the yamaha frontend.
