Springer Fork Geometry

by Johnn
(Wayzata, MN)

Springer Fork Rake

Springer Fork Rake

As the axle plates swivel up and down do they create changes in the geometry that can cause problems?

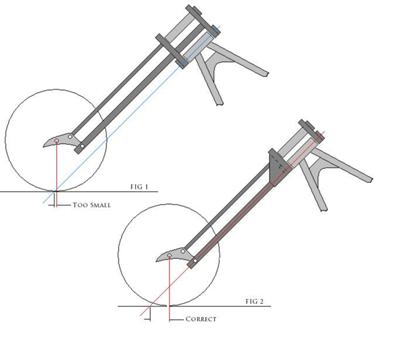

Fig 1 shows the first design, but the trail was too small.

To get the look I'm trying for I had to move the head tube up into the plates. Is there another way to get the trail I need with a design closer to Fig 1?

Fig 2 will take some serious design to get the strength needed to pull it off.
